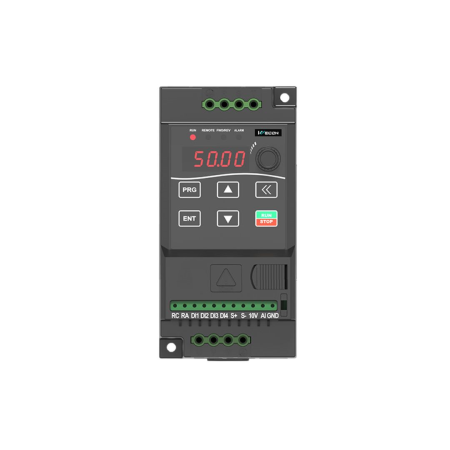

Biến tần VM-2S1R5 1.5kW 1 Phase 220V

Name: Biến tần VM-2S1R5 1.5kW 1 Phase 220V
SKU: 9816
Price: 1823250 VND
Availability: InStock

1.823.250₫

Mã sản phẩm: VM-2S1R5

– Cổng truyền thông: RS485
– Dành cho: Tải nhẹ
– Điện áp vào: 220V – 1 Phase
– Hãng sản xuất: Wecon

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Category: Biến tần Wecon

Specification

Control Characteristics	Way to control	V/F control
	Starting torque	0.5Hz/100%
	Speed range	1:50
	Stable speed accuracy	±1%
	Carrier frequency	1kHz ～ 6kHz
	Overload capacity	G type machine: 150% rated current 60s, 180% rated current 1s
	Overload capacity
	Torque boost	Manual torque increase 0.1% ~ 30.0%
Input / Output	Input voltage range	220V/380V; fluctuation range: ±15%
	Input frequency range	50/60Hz; fluctuation range: ±5%
	Output voltage range	0-input voltage, the error is less than 5%
	Output frequency range	V/F: 0-400Hz
Input / Output terminals	Digital input	4 terminals
	Analog input	1 terminal
	Relay output	1 terminal
	Analog output	1 terminal
Application Environment	Altitude	Lower than 1000m, service is derated capability above 1000m, derate 1% capacity every 100m increased in height.
	Humidity	≤95%RH, avoid condensation
	Vibration	Vibration acceleration is less than 0.6g
	Storage temperature	‘-25℃～+60℃
Enclosure	Shell material	ABS+PC
	Overall size (mm)	142.00H72.00W116.00D
	Weight (Kg)
	Package Dimensions (mm)	175.00H112.00W155.00D
